Ball Check Valve
A Ball Check Valve is the most cost-effective industrial valve used in pumping stations and has only moving parts to block the reverse flow. These have no external parts that ensure easy handling, high reliability and low cost of Ball Check Valves. Are you searching for one of the best Ball Check Valve Manufacturers In Delhi? Get straight to Soltech Pumps & Equipment Pvt Ltd. We manufacture and supply a wide range of Industrial Valves at competitive market prices.
Benefits Of Installing Our Ball Check Valves:
- Ensure lower possible pressure drop and 100% leak-proof sealing.
- Eliminate all conventional constraints to work optimally well in all conditions.
- Highly efficient, have no external parts and is available at the most reasonable rates.
- Ball Check Valves are self-cleaning valves that clean themselves while rotating during operations.
- Made with industry-grade material, have higher tensile strength and is suitable for lower pressure applications.
- Suitable for Fire Fighting, Water Distribution, Sewage Treatment, Steel Mills and Power Stations etc.
Contact Us To Order Now!
We are one of the noted Ball Check Valve Exporters and Suppliers In India. To buy customized Ball Check Valves, send your enquiry or call our experts now.
Send Enquiry
Our Features
- Free floating ball allows maximum flow through valve.
- The only moving part is the ball, so maintenance is reduced / nil.
- The solid polypropylene / PVDF ball seated on elastomer seatgives no chance for leakage.
- Ball fully supported by guide ribs for full f low and minimum turbulence.
- Available with various elastomer seats like Neoprene, Hyplon, EPDM, Viton for compatibility with different chemicals.
- Tight shut-off achieved at a minimum of 1 Meter Water Column.

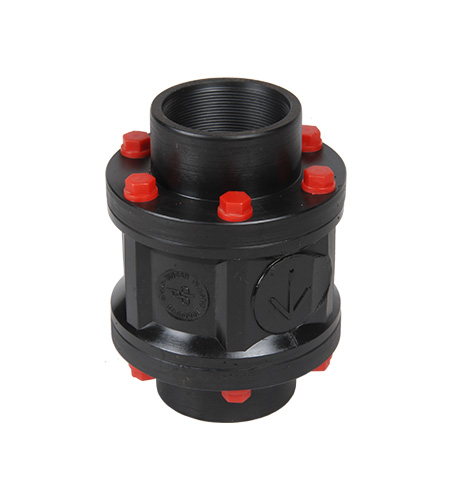

- Available in screwed end connections also.
- Size Range :15 mm NB to 150 mm NB.
- Drilling :As per all internationally accepted standards, such as BS, DIN, ASA 150 etc.
- Hydrostatic Test :At 10 kg/sq.cm.g for Body and Seat.
| No. | Part | Qty. | Material |
|---|---|---|---|
| 1 | Body | 1 | Iso. PP/ PPH/ PVDF/ A. PP/A. HD |
| 2 | End piece | 2 | Iso. PP/ PPH/ PVDF/ A. PP/A. HD |
| 3 | Ball | 1 | Iso. PP/ PPH/ PVDF/ A. PP/A. HD |
| 4 | Ball Guide Ring | 1 | Iso. PP/ PPH/ PVDF/ A. PP/A. HD |
| 5 | Body Seal O ring | 2 | EPDM/ NEOPRENE / PTFE / VITON |
| 6 | Ball Seal O ring | 1 | EPDM/ NEOPRENE / VITON |
| 7 | Stud, Nut & Washer | - | MS /SS304/ SS316 |
| 8 | Nut Cap | - | Iso. PP |
