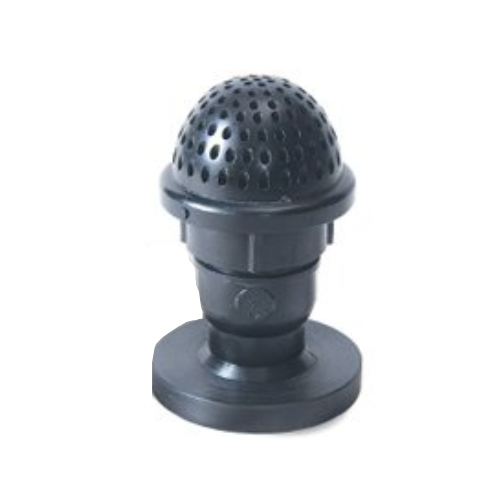

Foot Valve
Foot Valve is used to prevent backward water flow, ensure water pumps' safety and minimize energy wastage due to dry run. Soltech Pumps & Equipment Pvt Ltd – one of the foremost Foot Valve Manufacturers In Delhi, holds rich industry experience and apply the same to design and deliver standard and customized Industrial Valves. Based on modern technology, these works efficiently well and can give a boost to overall functioning. Thanks to their unique characteristics, Foot Valves have become a significant part of water pumping systems.
Top Features Of Our Foot Valves:
- Prevent backward water flow to the pipe.
- They last longer when submerged in water.
- Free-floating balls of Foot Valve allow maximum flow.
- Dimensionally accurate, easier to handle and require less maintenance.
- Have self-tapping male and female threads for ensuring quick installation.
- Robustly constructed and appreciated for optimum strength and performance.
- Made using high-grade components, Foot Valves can last for years in extreme conditions.
- Come with an elastomer seal that makes them compatible with different chemicals and ensure zero leakage.
Call Our Experts Now!
Despite the market competition, our name is renowned among the top Foot Valve Exporters and Suppliers In India. Give us a call or drop your enquiry to know more.
Send Enquiry
Our Features
- Free floating ball allows maximum flow through valve.
- The only moving part is the ball, so maintenance is reduced/nil.
- The solid polypropylene/ PVDF ball seated on elastomer seatgives no chance for leakage.
- Ball fully supported by guide ribs for full flow & minimum turbulence.
- Available with various elastomer seats like Neoprene, Hyplon, EPDM, Viton for compatibility with different chemicals.
- Tight shut-off achieved at a minimum of 1 Meter Water Column.

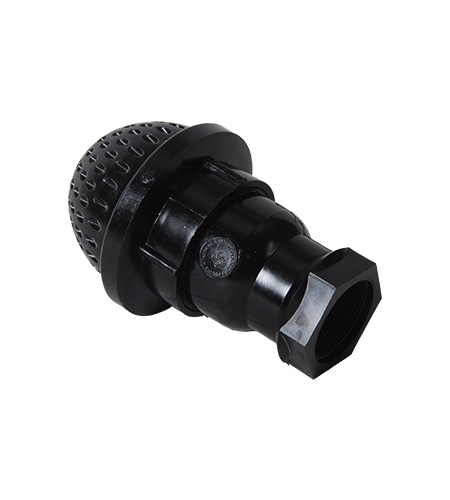

- Available in screwed end connections also.
- Size Range :115 mm NB to 150 mm NB.
- Drilling :As per all internationally accepted standards, such as BS, DIN, ASA 150 etc.
- Hydrostatic Test :At 10 kg/sq.cm.g for Body and Seat.
| No. | Part | Qty. | Material |
|---|---|---|---|
| 1 | Body | 1 | Iso. PP/ PPH/PVDF /A. PP/A. HD |
| 2 | Ball | 1 | Iso. PP/ PPH/PVDF /A. PP/A. HD |
| 3 | Ball Guid Ring | 1 | Iso. PP/ PPH/PVDF /A. PP/A. HD |
| 4 | Ball Seat | 1 | EPDM/ NEOPRENE / VITON |
| 5 | Nut | 1 | Iso. PP/ PPH/PVDF /A. PP/A. HD |
| 6 | Strainer | 1 | Iso. PP/ PPH/PVDF /A. PP/A. HD |
