Ball Valve
A Ball Valve is a shut-off valve used to control liquid or gas flow by using a metal ball with a hole bored through the centre and sandwiched between two seats. Soltech Pumps & Equipment Pvt Ltd – one of the best Ball Valve Manufacturers In Delhi, understand different needs and provide various Industrial Valves at competitive market prices. Offered Ball Valves complies with industry norms and are suitable for throttling gases and vapours.
Benefits Of Our Ball Valves:
- Useful for low-flow solutions.
- Anti-abrasive and non-corrosive in nature.
- Leak-proof and easy to open and close design.
- Known for high flexibility and smooth functionality.
- Control flow using a hollow, perforated and pivoting ball.
- Ball Valves are suitable for hydrocarbon process applications.
- Have small dimensions, is lighter in weight and easier to handle.
- The design is compact, easier to handle and meet set industry standards.
Buy With Us Today!
We are one of the determined Ball Valve Exporters and Suppliers In India. Our Ball Valves are available in distinct specifications for several industries. Fill the enquiry form or call our experts to know more.
Send Enquiry
Our Features
- Valves are of three piece design, fitted with six set of metallic studs and nuts which contributes to their sturdy construction.
- Valves have full bore; thereby, allowing full 100% flow.
- Body and Stem seals are offered in various elastomers like EPDM, Neoprene, Hyplon, Butyl, Viton and also in PTFE for chemical resistance against most chemicals.
- Valves with PTFE seals are provided with steel ring inserts which gives better sealing and safety features.
- Steel inserts in stem and handle give more strength, sturdiness, longer life and better performance.
- Carbon black resists ultraviolet rays and prevents degradation of polypropylene in sunlight exposure.

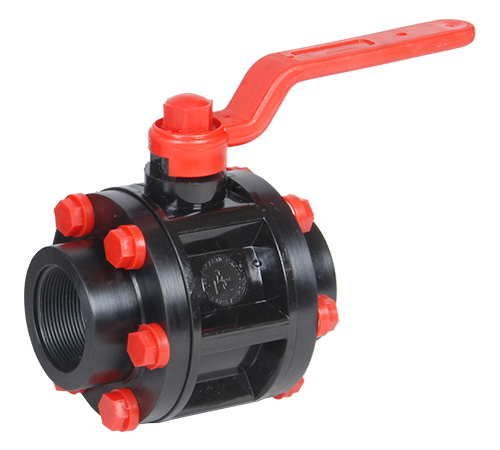

- Available in screwed end connections also.
- Size Range : 15 mm NB to 150 mm NB.
- Drilling : As per all internationally accepted standards, such as BS, DIN, ASA 150 etc.
- Hydrostatic Test : At 10 kg/sq.cm.g for Body and Seat.
| No. | Part | Qty. | Material |
|---|---|---|---|
| 1 | Body | 1 | Iso. PP/PPH/PVDF/A. PP/A. HD |
| 2 | End piece | 2 | Iso. PP/PPH/PVDF/A. PP/A. HD |
| 3 | Ball | 1 | Iso. PP/PPH/PVDF/A. PP/A. HD |
| 4 | Stem | 1 | MS/SS304/SS316 insert moulded with Iso. PP/PPH/PVDF/A. PP/A. HD |
| 5 | Seat | 2 | PTFE |
| 6 | Body Seal 0 rings | 2 | EPDM/NEOPRENE /PTFE / VITON |
| 7 | Stem Seal 0 rings | 2 | EPDM/NEOPRENE /PTFE / VITON |
| 8 | Bearing | 1 | PTFE |
| 9 | Bearing | 1 | Iso. PP |
| 10 | Distance Piece | 1 | Iso. PP |
| 11 | Stud, Nut & Washer | - | MS / SS304/ SS316 |
| 12 | Stem Nut | 1 | MS / SS304/ SS316 |
| 13 | Nut Cap | - | Iso. PP |
| 14 | Handle | 1 | MS insert moulded with PP |
| 15 | Handle Cap | 1 | Iso. PP |
