Plate Type Filter Unit
Want to buy a Plate Type Filter Unit for your filtration system? Looking for one of the prominent Plate Type Filter Unit Manufacturers In Delhi? Soltech Pumps & Equipment Pvt Ltd is the name to recall. Our Filter Units are as per the industry norms and available with us in multiple configurations. Made with a wide range of materials, Plate Filter Unit is often used for fine filtration applications. It is easy to assemble, have an endurable working life and is as per the defined industry norms.
Pros Of Our Plate Type Filter Units:
- Known for robustness and long service life.
- Mostly used for clarification and filtration of liquids.
- Appreciated for their optimum strength and high durability.
- Available in many designs, dimensions and other specifications.
- Come in flawless finish and ensure efficient working, despite the climatic challenges.
- Ensure the simple installation and come in optimum finish to stand extreme conditions.
Place Your Order Now!
With our dedication, we today have our reputation among top Plate Type Filter Unit Exporters and Suppliers In India. You can call or drop your direct enquiry to our executives.
Models PFU 200 GF, PFU300 GF AND PFU 400 GF MAX CAPACITY UP TO 20000 LTR/HR.
Specification

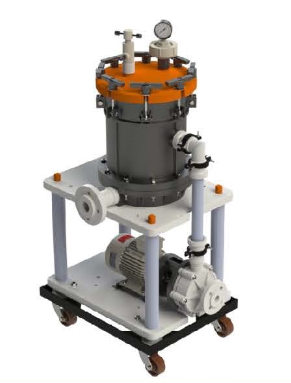

| PFU 200 GF | |
| M.O.C. — Chamber | Moulded GF PP |
| No. Of Plates In Chamber | 16 |
| Dia. Of Plates | 204 mm |
| M.O.C. - Plates | P .P |
| Max. Pressure | 1.2 kg/mtr2 |
| Max. Operating Temp. | 60 °C |
| Max. Capacity | 6000 Ltr / hr |
| Pump Model | DMP 100 IMS |
| PFU 200 GF DUPLEX | |
| M.O.C. — Chamber | Moulded GF PP |
| No. Of Plates In Chamber | 16 + 16 |
| Dia. Of Plates | 204 mm |
| M.O.C. - Plates | P.P. |
| Max. Pressure | 1.2 kg/mtr2 |
| Max. Operating Temp. | 60 °C |
| Max. Capacity | 12000 Ltr / hr |
| Pump Model | DMP 200 IMS |
|
PFU 300 GF |
|
| M.O.C. — Chamber | Moulded GFPP |
| No. Of Plate In Chamber | 20 |
| Dia. Of Plates | 304 mm |
| M.O.C. — Plates | P.P. |
| Max. Pressure | 1.48 kg/mtr2 |
| Max. Operating Temp. | 60 ℃ |
| Max. Capacity | 12000 Ltr/hr |
| Pump Model | DMP 200 IMS |
| PFU 300 GF DUPLEX | |
| M.O.C. — Chamber | Moulded GFPP |
| No. Of Plate In Chamber | 20 + 20 |
| Dia. Of Plates | 304 mm |
| M.O.C. — Plates | P.P. |
| Max. Pressure | 1.48 kg/cm2 |
| Max. Operating Temp. | 60 ℃ |
| Max. Capacity | 24000 Ltr/hr |
| Pump Model | DMP 300 IMS |

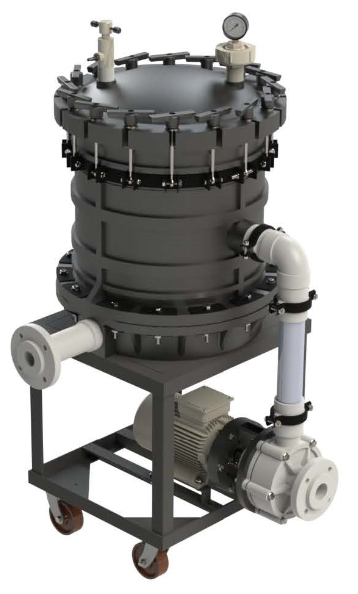

| PFU 400 GF | |
| M.O.C. — Chamber | Moulded GFPP |
| No. Of Plate In Chamber | 10 |
| Dia. Of Plates | 375 mm |
| M.O.C. — Plates | P.P. |
| Max. Operating Temp. | 60 °C |
| Max. Capacity | 20000 Ltr/hr |
| Pump Model | DMP 300 IMS |
| Pump Model | DMP 50 IMS |
